CA EQUIPMENT

In house control systems

See below for the various systems and equipment we offer

All control systems are Designed and built in house here at CA Services allowing us to make bespoke systems to suit all of your needs.

CA control systems
CO2 scrubber control
Temperature monitoring & logging
Refrigeration control
Shipping CA Control Systems
Safe atmosphere alarm systems
Portable hand held dual analysers

New CA Control System

Operator friendly controls

Designed and Built by CA Services

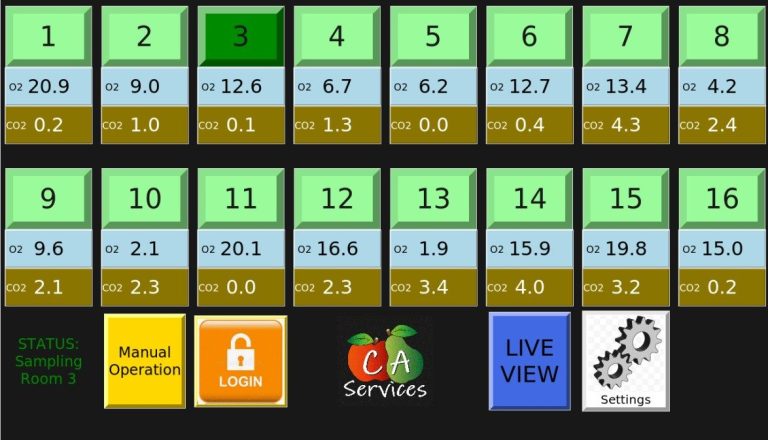

New Scrubber Controls

Easy to use large touch buttons

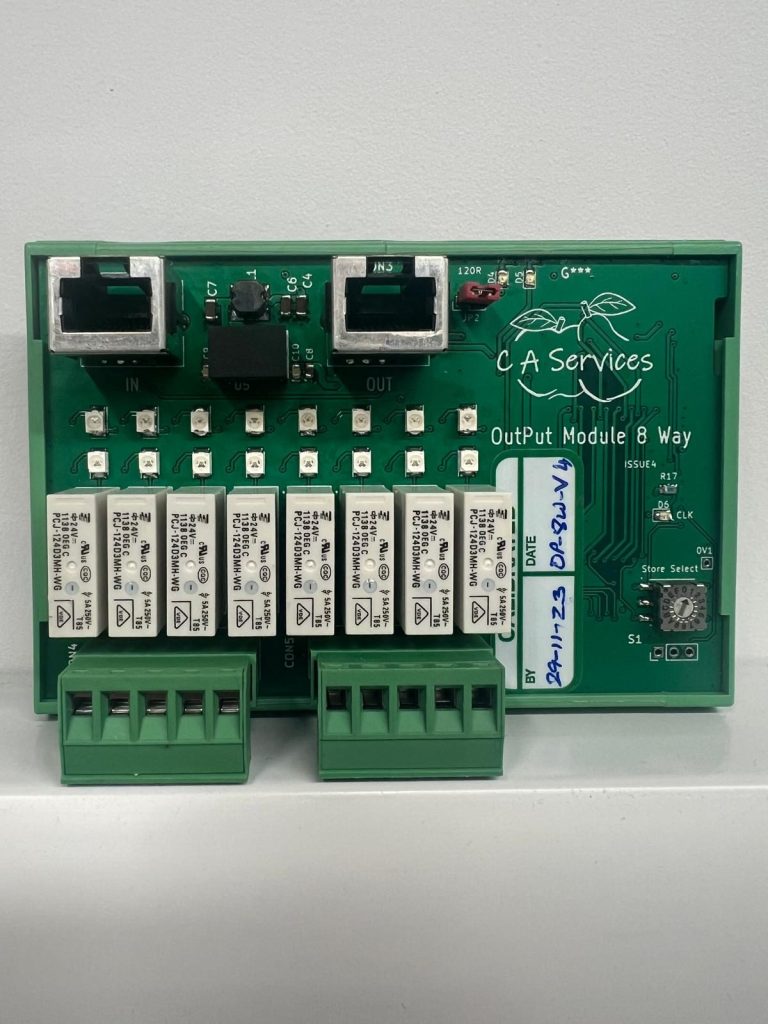

New Hardware

Designed and built by CA Services here in the UK.

We are proud to be Van Amerongen's sole distributor for the UK we are able to offer a wide range of high quality CO2 absorbers and N2 Generators & Dynamic solution along side expert knowledge and support.

CO2 Absorber

CO2 absorber also known as a scrubber is used with in CA Storage to remove carbon dioxide from the store, using an active carbon.

Using a Van Amerongen (VA) the advantages:

Single bed combined with lung (buffer) minimal O2 is added between operations.
twice as energy efficient by using single bed over twin.
No nitrogen is used to maintain low 02 of machines operation.

We combine this with our own touch screen controller, this allows for easy monitoring and setup between stores. Paired with our own dual analyser we are able to run the machine more efficiently by saving time between absorption and regeneration.

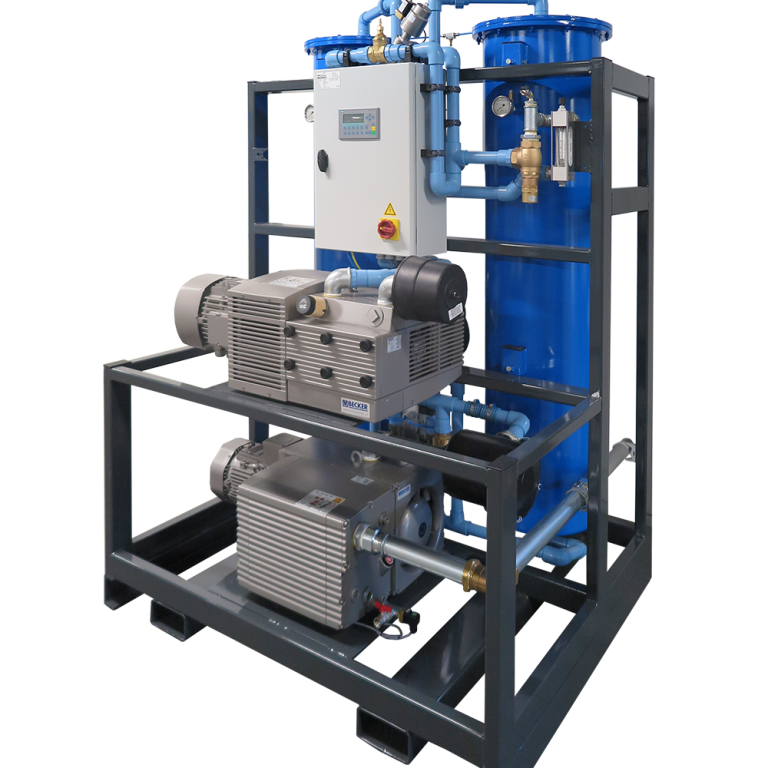

VPSA N2 Generator

VPSA (Vacuum Pressure Swing absorption) is a low pressure technique allowing you to switch between circulate and inject.

Circulate also known as pull down is the most efficient way of removing oxygen from an individual store. Using the atmosphere of the store meaning the lower oxygen in the store the less oxygen is needed to be absorbed.

Inject adsorbs oxygen in the air which allows for more then one store to be calling for nitrogen at one time. As well as putting the store in a positive pressure state , allowing for ultra low oxygen regimes.

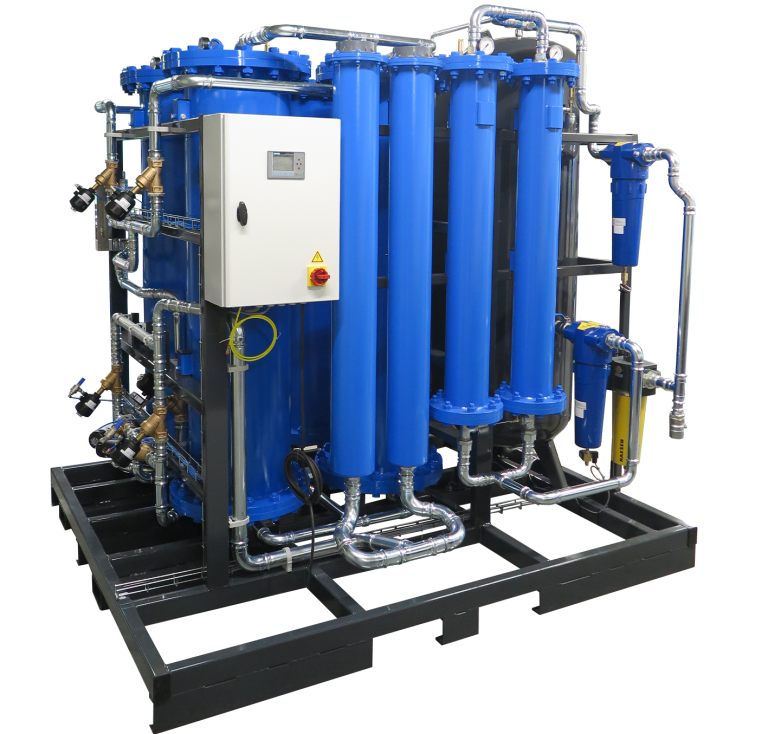

PSA N2 Generator

PSA (Pressure Swing Absorption) is used for applications in need of high volumes of nitrogen supplied at high pressure with high purity of less then 0.5% oxygen.

unlike a VPSA you are unable to circulate.

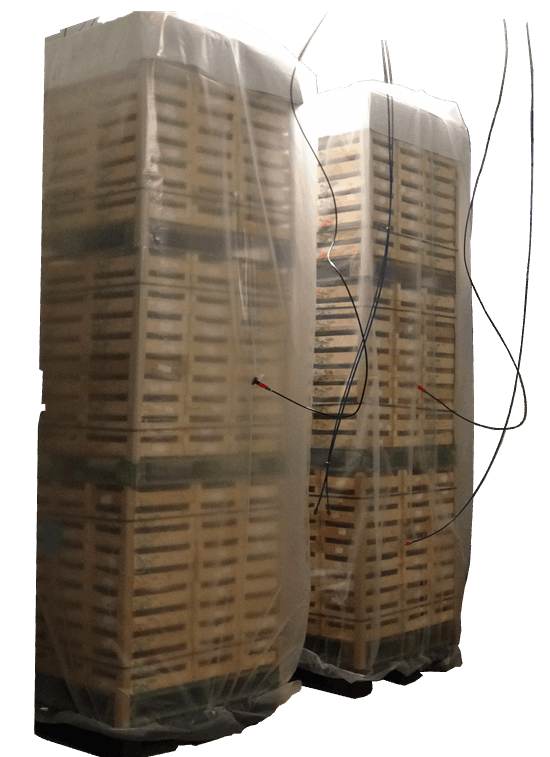

Palliflex

Storing fruit on pallets

Every type of fruit requires a specific O2 and CO2 concentration for the very best storage. This sets high demands on your climate system. You certainly don’t want the conditions in pallets disrupted if you disconnect some of the other pallets. Storage per pallet means that you can distribute parts of the stock, without the storage conditions of other units being disrupted. This minimises product losses and allows you to capitalise flexibly on the market and maximise your margins.

Palliflex400 is Van Amerongen’s pallet storage systems. Palliflex400 is perfectly suitable for storing soft and small fruit and a range of vegetables.

Flexible & modular

Palliflex400 is a modular system, with a minimum of 10 and a maximum of 400 units. The system can easily be extended. Palliflex 400 is equipped with max. 4 My Fruit measuring circuits that can each serve 100 covers

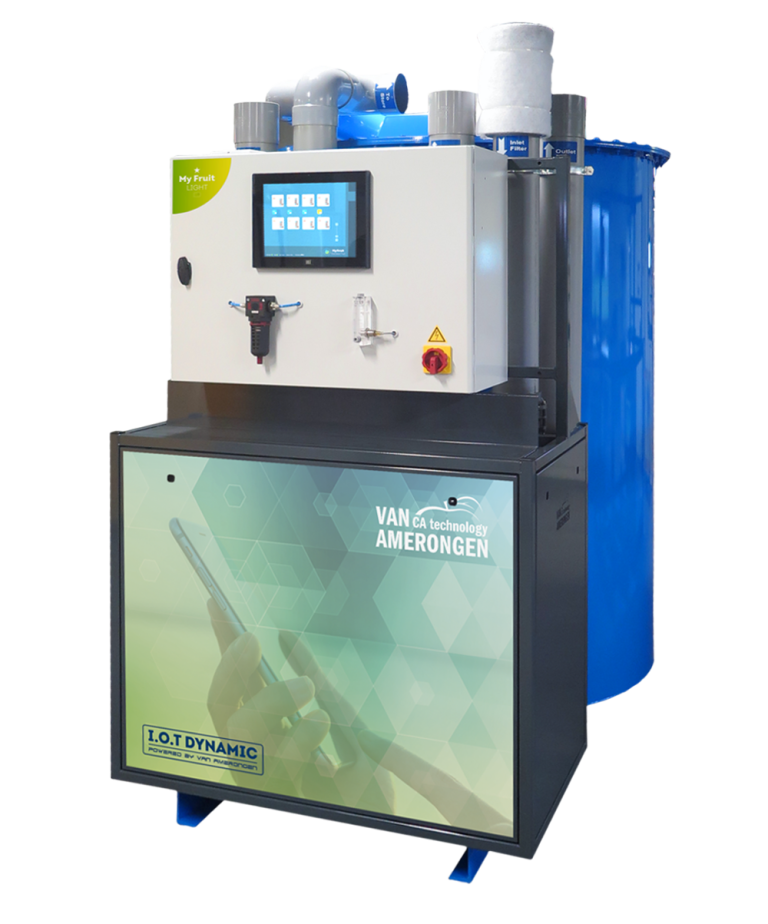

Dynamic Controlled Atmosphere (CA) storage

The Dynamic controlled atmosphere system from Van Amerongen (ACR) applies CA conditions dynamically during the storage period (instead of setting this in advance). The equipment used for the 'Dynamic CA Storage System' responds to the physiological condition of the fruit in the cell and then automatically adjusts the storage conditions accordingly (storage, based on product response). Oxygen percentages of less than 1% are no problem because the oxygen concentration will be immediately amended if it threatens to get too low.
